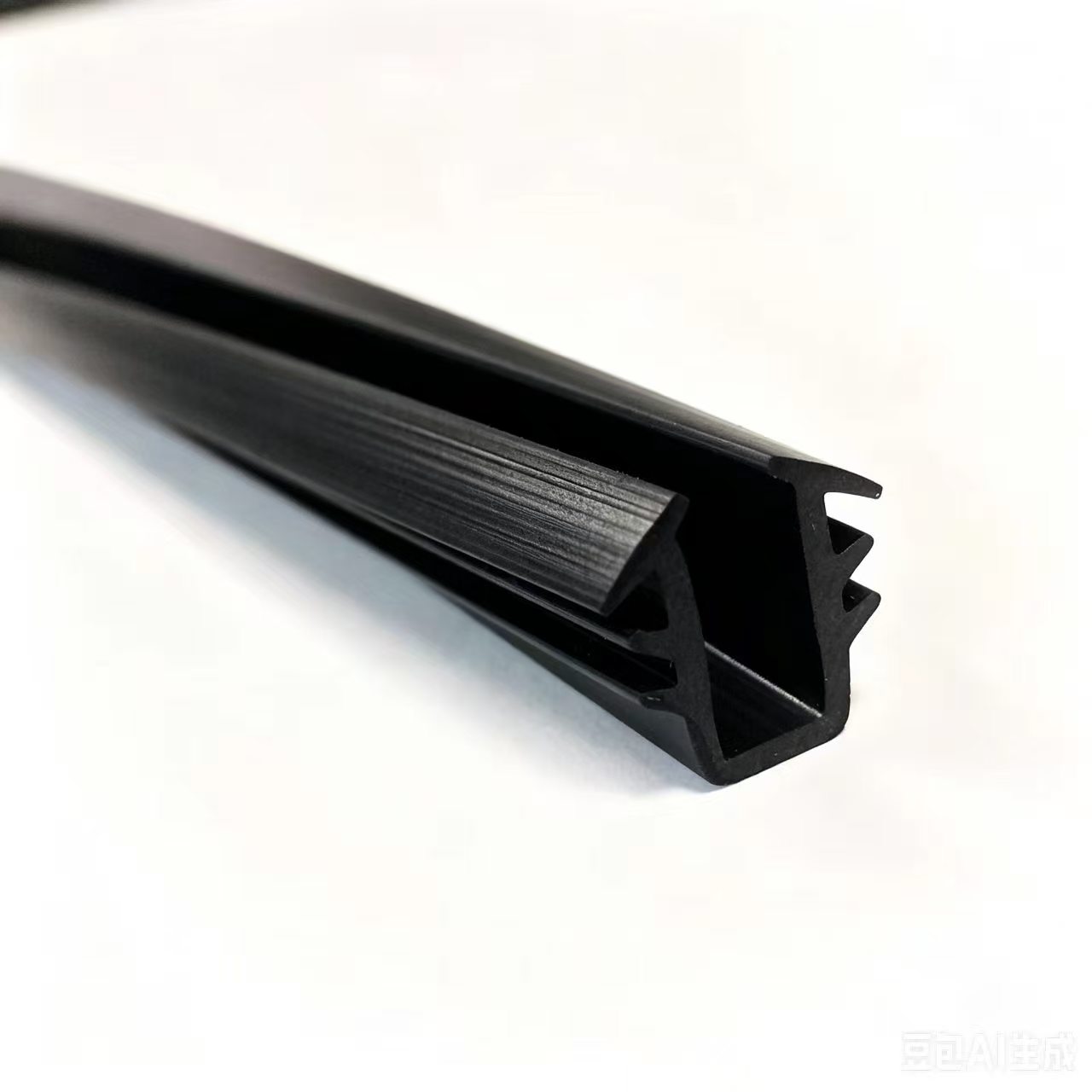

Profile Type: Donglv No. 6
Profile Code: s870
Mold Model: 8012
Size: 12mm*10mm
Application: Used for the overlapping seals of frames and sashes or glass bead seals in broken bridge aluminum casement windows/system windows and uPVC doors and windows. It is used to construct pressurized chambers in doors and windows, achieving waterproofing, sound insulation, and air tightness. It is a key component of triple-seal doors and windows.
Weight per meter: 12.59m/kg
Price: 14 CNY/kg
Compatible Profile Types: Compatible with broken bridge aluminum profiles with standard gasket grooves (such as 60/65/70/75/90 series) and uPVC profiles. It is especially common in multi-chamber broken bridge aluminum system windows and can match conventional profiles with insulation strip widths of 16-39mm and slopes of 87-90°.
Function Positioning: Serves as the core sealing layer of doors and windows, directly exposed to the outdoor environment. It has characteristics of aging resistance, high and low temperature resistance, and resistance to rainwater erosion, making it a key component ensuring the water tightness and air tightness of doors and windows.
