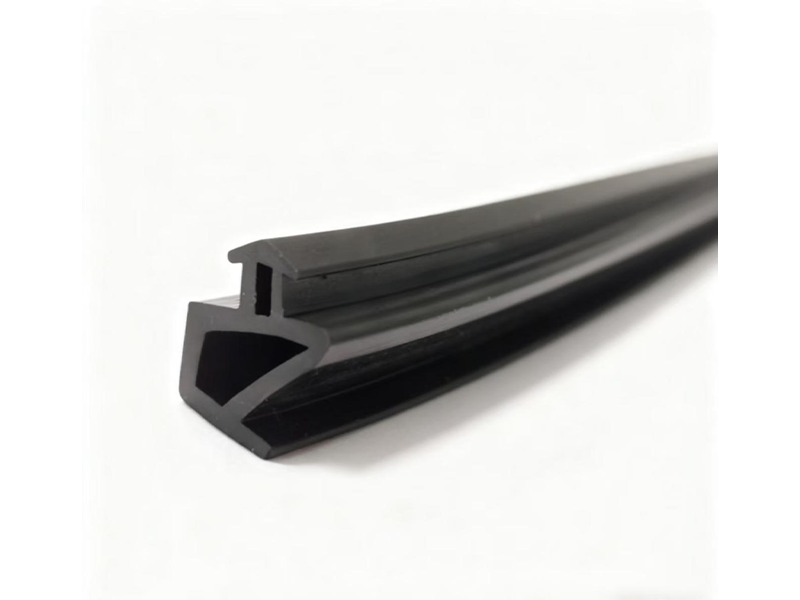

Profile Type: Sash Seal
Profile Code: po
Mold Model: 4142
Dimensions: 42mm*41mm
Application: Used for the sash frame side seal of broken bridge aluminum casement windows / system windows. It is an auxiliary seal strip for the interior side or overlapping frame sash, working together with equal-pressure strips to form a multi-layer sealing system that achieves sound insulation, airtightness, and dustproof effects. Designed with the same groove as the Huajian 65C-24 profile, the groove dimensions are approximately 4.2mm×4.1mm for broken bridge aluminum profiles, with an industry-standard slope of 87-90°, suitable for conventional broken bridge aluminum profiles with insulation strips of about 24mm. Compatible with top hardware brands such as Kinlong and Guoqiang, it is an important component of a complete door and window sealing structure.
Meters per Kg: 21 meters/Kg
Price: 30 CNY/Kg
Tel: +86-13721940920
