Profile Type: Equal Pressure Three-Chamber
Profile Code: DYS02
Mold Model: 02
Dimensions: 25mm*20mm
Applied to: Corner and meeting rail sealing or glass bead sealing of broken bridge aluminum casement windows/system windows and uPVC doors and windows. Used to create equal pressure chambers in doors and windows, achieving waterproof, soundproof, and airtight performance. It is a key component of triple-sealed doors and windows.
Compatible Profile Types: Suitable for broken bridge aluminum profiles with standard rubber strip grooves (such as 60/65/70/75/90 series) and uPVC profiles. Especially common for multi-chamber broken bridge aluminum system windows, compatible with insulating strip widths of 16-39mm and conventional profiles with an angle of 87-90°.
Functional Positioning: Acts as the core sealing layer of doors and windows, facing the exterior environment. It features aging resistance, high and low temperature resistance, and rainwater erosion resistance, serving as a key component for the water and airtight performance of doors and windows.
Weight: 5.8m/Kg
Price: 18 CNY/kg
Tel: +86-13721940920
Core Product Information (for multi-chamber TPE weather seal used in doors and windows, belonging to window and door accessories):
Material: TPE (Thermoplastic Elastomer)
Offers both elasticity and easy processability
Resistant to aging and compression set
Structural Features:
Multi-chamber design enhances sealing, sound insulation, and thermal insulation
Features a snap-in groove structure for quick installation into the profile slots of door and window frames
Main Application:
Used for sealing gaps in PVC-U, aluminum, and other types of doors and windows
Improves wind resistance, water tightness, and sound insulation
Provides cushioning when doors and windows are closed

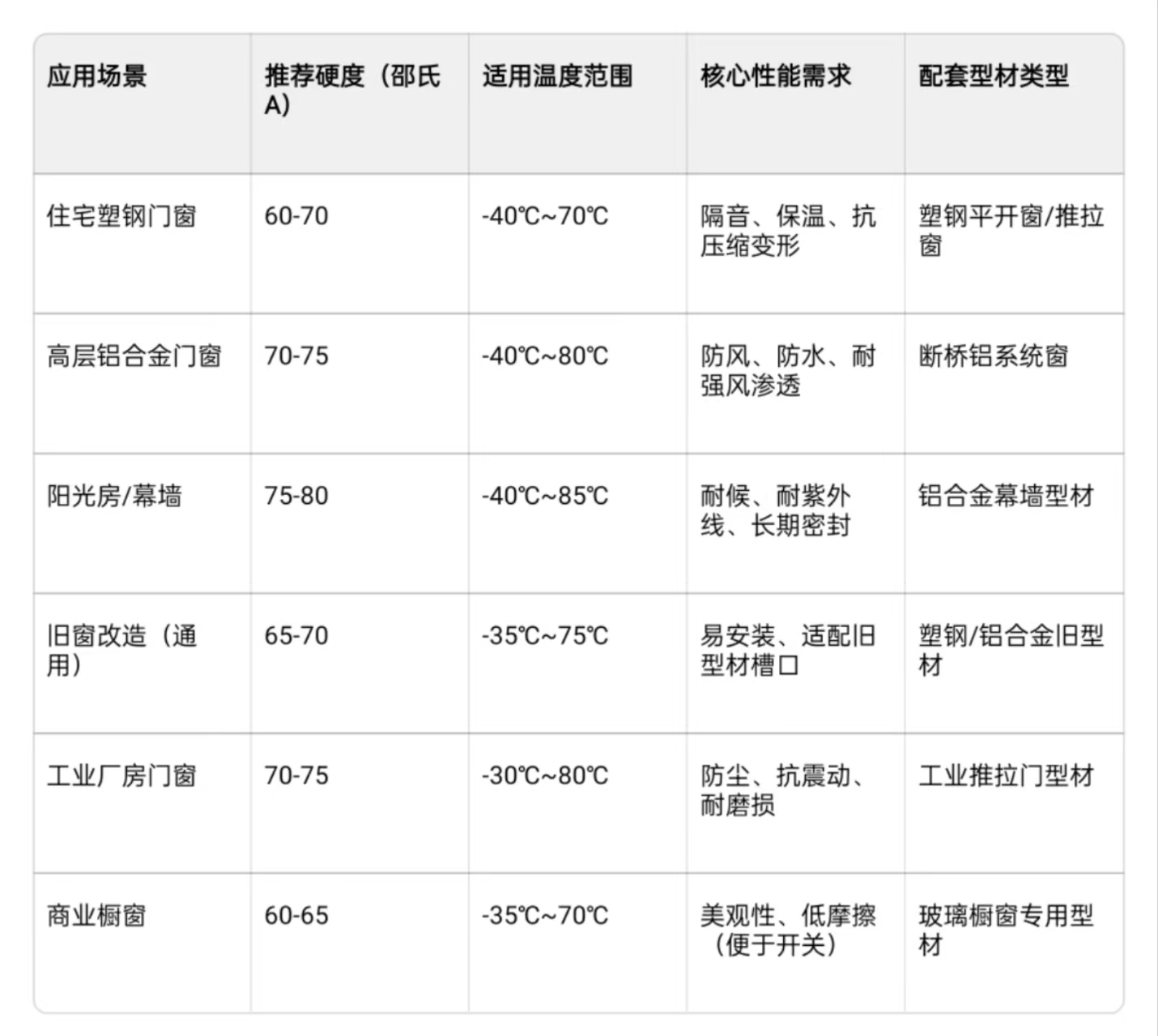

Applicable Scenarios:
Commonly used in building doors and windows, sunrooms, and other sealed structures
Serves as a key component in energy-saving and sealing systems for doors and windows
