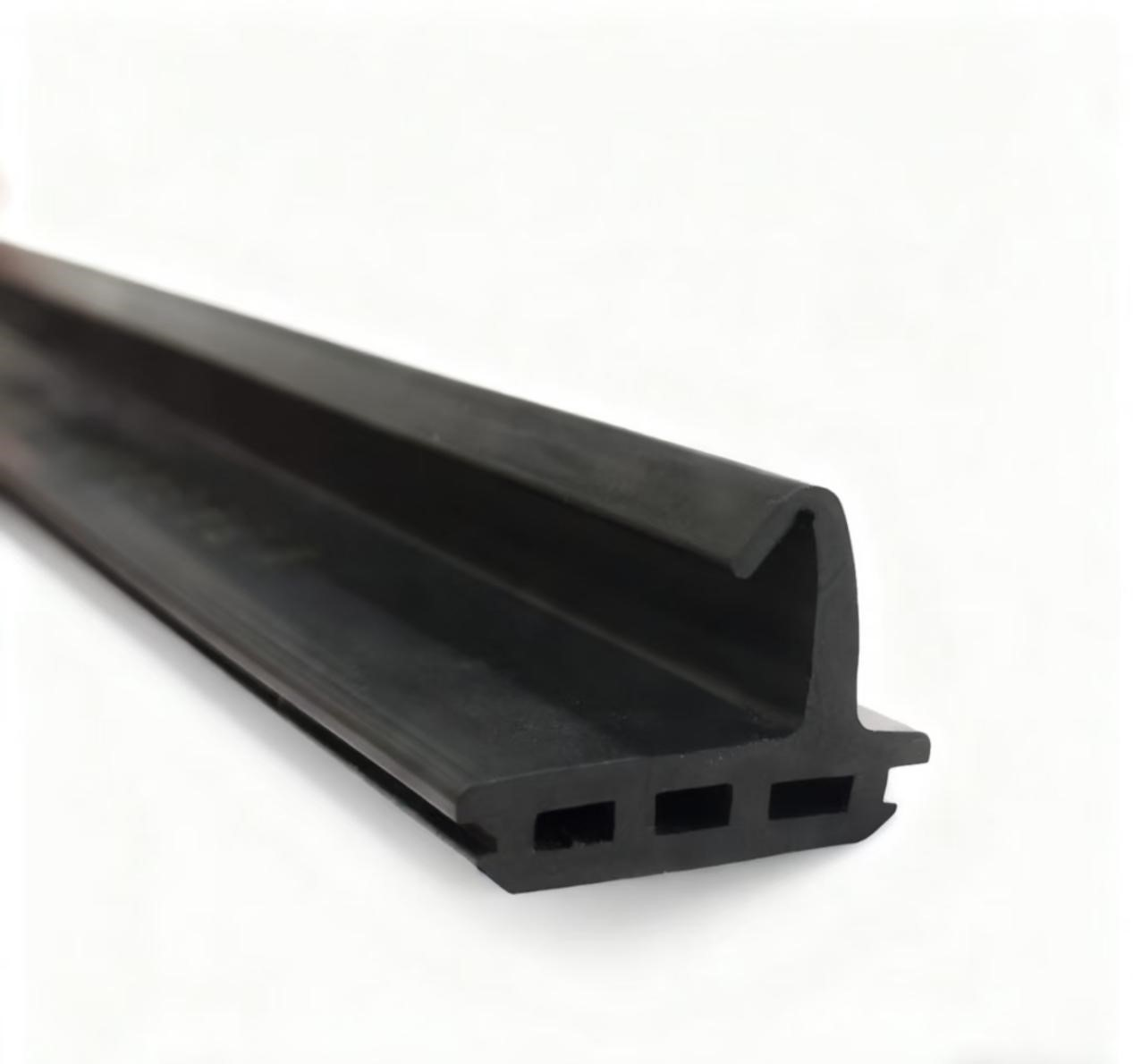

Mouth Type: Nanshan Equal Pressure

Mouth Type Code: NS-A006

Mold Model: 88466

Size: 23.6mm*18.8mm

m/kg: 4.8 meters/Kg

Price: 34 CNY/meter

Application: Core pressure-equalizing seal used for

 Nanshan series broken bridge aluminum/aluminum

alloy doors and windows frames and sashes.

Installed on the exterior side of the sash frame,

directly facing rainwater impact, it forms the

 pressure-equalized cavity of doors and windows and

is a key component to achieve waterproof, airtight,

and soundproof performance. The multi-chamber

structural design balances wind resistance and elastic

 sealing performance, serving as the core gasket in

three-seal/four-seal door and window systems.

Compatible with Nanshan 65 series (NANSHAN65-20/24)

broken bridge aluminum profiles, Nanshan 75 series

 (GP75FN-24) broken bridge aluminum profiles, and

other broken bridge aluminum profiles with similar groove

 design and groove dimensions of approximately

 23.6mm×18.8mm, with an industry-standard slope

of 87-90° and thermal break width between 20-24mm.

Surface: Smooth, uniform in color with no discoloration,

continuous lines, even gloss, forming a matte appearance.

Performance: Excellent weather resistance, durability,

ozone resistance, and UV resistance. Suitable for various

 static and dynamic sealing applications.

Applicable Environment: Suitable for environments

ranging from -35°C to 160°C, and can be used for buildings

 over 26 floors and in high-wind urban areas.

Formula: Four-star EPDM gasket improved formula, original

rubber content over 36%, containing dozens of small additives.

Tensile Strength: Four-star EPDM gasket tensile strength is 13 MPa.

Elongation at Break: Four-star EPDM gasket elongation at break is 500%.

Quality Assurance: Shelf life over 30 years, with pre-sale, in-sale, and

after-sale services provided.
